How to create a Tomcat Instance

Prerequisite:

How to set JAVA_HOME / PATH variables in Windows

How to set CATALINA_HOME/PATH variables in Windows

1. Create a serverA directory in C:\Apache\Tomcat. This should result to C:\Apache\Tomcat\serverA

2. Create the following empty folders bin, conf, lib, log, temp, webapps, work. There the same folders found in C:\Apache\Tomcat\apache-tomcat-6.0.26

3. In C:\Apache\Tomcat\serverA\bin create startup.bat and put the following



set CATALINA_HOME=C:\Apache\Tomcat\serverA

C:\Apache\Tomcat\apache-tomcat-6.0.26\bin\startup.bat



4. In C:\Apache\Tomcat\serverA\bin create shutdown.bat and put the following

set CATALINA_HOME=C:\Apache\Tomcat\serverA

C:\Apache\Tomcat\apache-tomcat-6.0.26\bin\shutdown.bat

5. In C:\Apache\Tomcat\serverA\bin create setenv.bat and put the following. Note that this is where heap size is set.

6. Copy the content of C:\Apache\Tomcat\apache-tomcat-6.0.26\webapps to C:\Apache\Tomcat\serverA\webapps. This will contain the default applications installed with Tomcat including the manager.

7. Copy the content of C:\Apache\Tomcat\apache-tomcat-6.0.26\conf to C:\Apache\Tomcat\serverA\conf

8. Edit server.xml modify the port numbers. I will leave server to the default ports but all additional instances will be incremented by 1; for example serverB will have port 8081.

9. Edit tomcat-user.xml and rolename=”manager”. This will be used in accessing the manager application.

10. At this point the server can be started using the startup script.

Integrate Redmine with Eclipse

Install Mylyn Tasks Connector: Web Templates
 1. Add Mylyn Incubator plugin into eclipse
Name : Mylyn Incubator
Location : http://download.eclipse.org/mylyn/incubator/3.8

Adding Redmine Task Repository

1. Open Task Repository View

2. Click Add Task Repository

3. Select Web Template (Advanced)

4. Next

5. Add the following

Server : http://serverurl/redmine

Label : Redmine Instance

User ID :

Password :

Under Additional Settings

- Add loginToken

Under Advanced Configuration add the following

Task URL : ${serverURL}/issues/

New Task URL : ${serverURL}/projects//issues/new

Login Request URL : ${serverUrl}/login?username=${userId}&password=${password}&authenticity_token=${loginToken}

Login Form URL : ${serverUrl}/login

Login Token Pattern :

Adding Query to Task List View

1. Open Task List View

2. Right Click - New - Query

3. Select Redmine Instance in the List of Repositories

4. Next

5. Enter the following

Query Title : My Redmine Tasks

Under Advanced Configuration

Query URL : ${serverUrl}/projects//issues?query_id=2 ( URL of a prepared Custom Query in Redmine)

Query Pattern : <td class="tracker">({Type}.+?)</td><td class="status">({Status}.+?)</td>.+?<td class="subject">.*?<a href=".*?/issues/({Id}\d+)">({Description}.+?)</a></td>({Optional}<td class="assigned_to"><a href.+?>({Owner}.+?)</a></td>)?

6. Click Preview to verify data can be retrieved

7. Finish

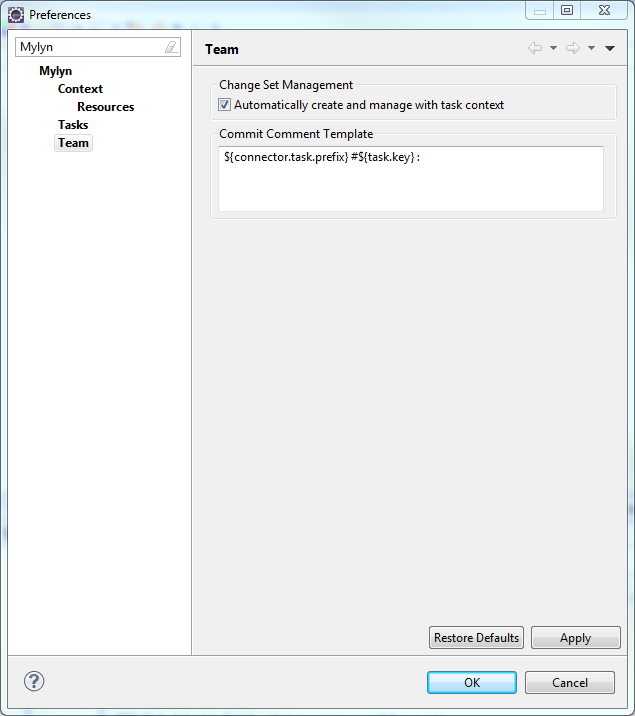

Setup Mylyn Team Preference

When a task is activated and changes is checked in the comments will be prepopulated

1. Window - Preferences - Type Mylyn - Team

2. Under Commit Comment Template put ${connector.task.prefix} #${task.key} :

Setup Redmine Repository Settings

1. Click Administrations - Settings - Repositories

2. In the Referencing keywords add "task"

3. Click Save

Conclusion

By doing this, the revision will automatically be associated to the Redmine task the developer chose to activate in the the task list.
